Place of Origin:
China
Brand Name:
ZhongXing HengYe
Certification:
CE/ISO9001/RoHS/3C/CQC//UL/TUV
Model Number:
ZX-EG003
Integrated Cold White 200W Monocrystalline Silicon Solar Light-emitting Diode Street Lamp
Feature
1. Adopting monocrystalline silicon technology, the photoelectric conversion efficiency exceeds 22%, significantly enhancing the speed of light energy capture
2. Integrated anti-reverse charging and overload protection circuits to prevent voltage fluctuations from damaging core components
3. Compatible with MPPT intelligent controller, the charging efficiency is increased by more than 20% compared with traditional PWM technology, and it can still stably store electricity on rainy days
4. The large-capacity energy storage supports continuous full-night lighting for 3 to 5 rainy days, meeting the demand for high-brightness all-night operation
5. Lithium iron phosphate cells operate stably in an environment ranging from -20℃ to 60℃ (better than the lower limit of -15℃ for lead-acid batteries).
6. After 2,000 deep cycles, the capacity retention rate is no less than 80%, with a service life of up to 8 years, reducing replacement costs
7. 70,000 hours of low light attenuation LED light source, with a brightness attenuation rate of less than 10% within 5 years
8. Integrated design eliminates the need for wiring. A single person can complete the installation of a single set within 2 hours, saving 90% of construction costs
9. 120° wide-angle lens light distribution, single lamp coverage radius of 15 meters, supports multi-scene adaptive dimming
Specificaiton
Place of Origin |
China |
LED Lamp |
3030 LED 288PCS 6000K |
Solar Panel |
18V 88W,Mono-Crystalline |
Battery Type |
LiFeP04 12.8V 54AH |
Charging Time |
6-8 hours |
Discharging Time |
30-36 hours |
Control Way |
Motion Sensor+Light Control |
Led |
160 lm/w |
Product Size |
1192*343*150mm |
Material |
Aluminium alloy |
install Height |
8-12m |
Working Temperature(°C) |
-20-60 |
Color Rendering index(Ra) |
80 |
Certification |
rohs,ce |
Warranty |
3 years |
Product description
|

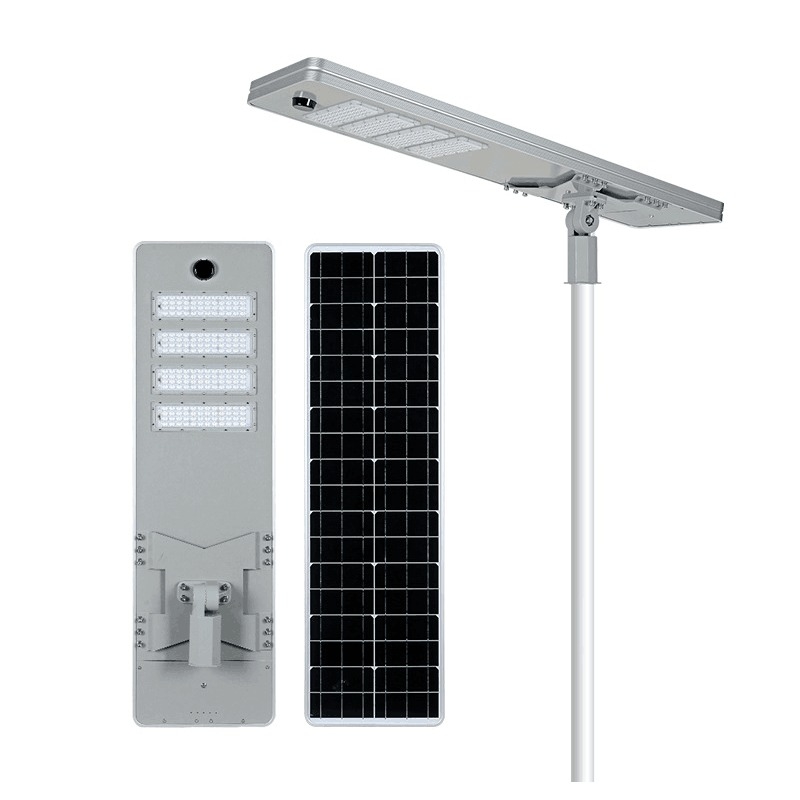

Solar integrated street light
1.All In one/ Integral design, no need extra cable, easy to ship, install and maintenance. 2.All In one Integrated design(Put Solar Panel, LED Lamp, Battery and Controller in One Box) 3.Without Any Cable, Easy to Install and Ship 4.Longer Service Life 5.Easy to Maintain and Replace Traditional Lights 6.Save Energy and Eco-friendly 7.Support Long Working Time Up To 7 DAYS Once the Battery Full Charged 8.Waterproof Grade IP65 for Outdoor Application 9.Resist any Bad Weather Condition and Working Temperature Range from -20°C to 65°C |
High Quality Led Chip
The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;
|
|
|
High Efficacy Solar Panel
Polycrystalline silicon solar panels, which are easier to manufacture, save power, and have low overall production costs.
|
High-end solar street light
1.Integrated design: LED lights, solar panels, lithium batteries, controllers and sensors 2.Intelligent mode to extend battery working time. 3.User-friendly design: no wiring, 100% solar power supply, easy to install and transport. 4.Built-in infrared sensor, can automatically adjust the light output. 5. Proof: waterproof, dustproof, rustproof. |
|
