All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation

LiFePO4 solar street light

8-12m pole solar light

integrated solar street lamp

Place of Origin:

China

Brand Name:

ZhongXing HengYe

Certification:

CE/ISO9001/RoHS/3C/CQC//UL/TUV

Model Number:

ZX-EG005

Contact Us
Request A Quote
Product Details
Material:
Die-cast Aluminum
Lamp Size:
1550*534*174mm
LED:
200 Im/w
Service:
OEM/ODM Customized
Warranty:
3Years
Charging Time:
6-8 Hours
Discharging Time:
30-36 Hours
Application:
Wall,park, Courtyard, Road, Square, Etc.
Waterproof:
IP65
Install Height:
8-10m
Solar Panel:
16. 5v 180w, Mono-Crystalline
LED Lamp:
5050 LED 168PCS 6000K
Highlight:

LiFePO4 solar street light

,

8-12m pole solar light

,

integrated solar street lamp

Payment & Shipping Terms
Minimum Order Quantity
30
Price
Please consult the customer service.
Packaging Details
Please consult the customer service according to the specific model
Delivery Time
15-30days
Payment Terms
L/C,T/T,Western Union,MoneyGram,D/P,D/A
Supply Ability
5000/month
Product Description

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation

Feature

  • High-brightness LED, leading in lighting efficiency
    • Adopting 5050 high-brightness LED chips (168/252 PCS)
    • The luminous efficacy can reach up to 200 lm/W, with concentrated brightness and a wide illumination range
    • A single lamp can meet the lighting needs of roads, parks and main rural roads
  • High-efficiency monocrystalline silicon solar panels charge faster
    • Equipped with high-conversion monocrystalline silicon solar panels (180W / 200W)
    • It can still charge efficiently under limited sunlight conditions
    • It can be fully charged in 6 to 8 hours and is suitable for various climate regions
  • Large-capacity LiFePO4 battery, safe and durable
    • Built-in 12.8V LiFePO4 lithium iron phosphate battery (90Ah / 108Ah)
    • Compared with ordinary lithium batteries: Safer, More heat-resistant, Longer cycle life
    • It can be continuously illuminated for 30 to 36 hours and work stably even on rainy days

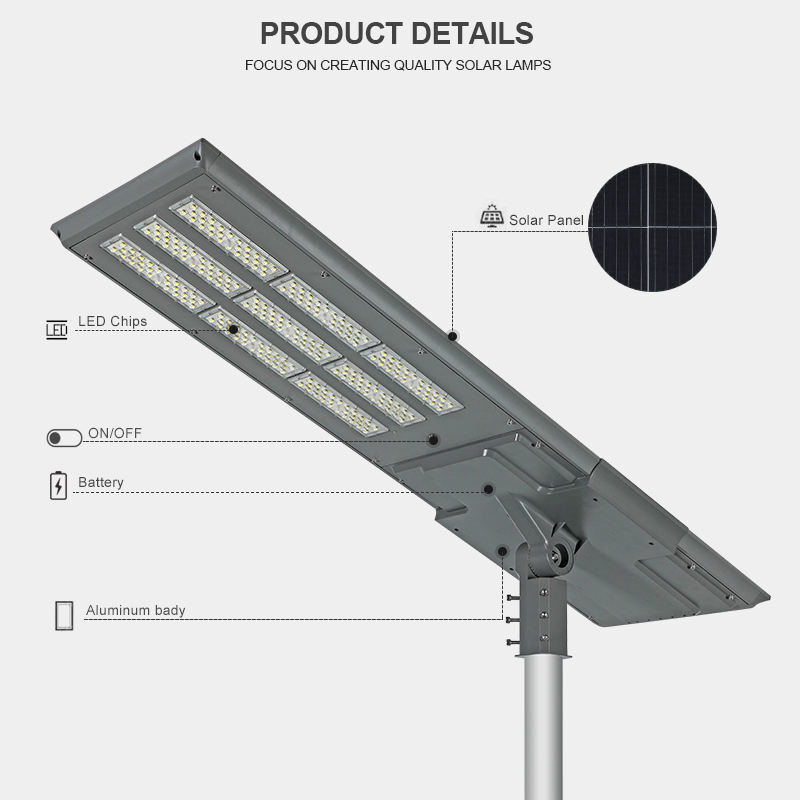

  • Integrated structure design for more convenient installation
    • All-in-One integrated design
    • No complex wiring is required, saving labor and construction costs
    • Applicable installation height (8 to 10 meters/10 to 12 meters)
  • Die-cast aluminum lamp body, sturdy and durable
    • The lamp body is made of die-cast aluminum material
    • Possessing outstanding
    • Compressive resistance performance
    • Impact resistance performance
    • Heat dissipation performance
    • Suitable for long-term outdoor high-intensity use
  • IP65 waterproof rating, all-weather operation
    • It meets the IP65 water and dust resistance standard
    • Unafraid of rain, dust and sandstorms
    • It is applicable to highways, rural areas, industrial zones and coastal regions
  • High-temperature resistant design, suitable for harsh environments
    • The key components have the ability to withstand high temperatures
    • It can operate stably in high-temperature and strong-sunlight environments
    • It is particularly suitable for high-temperature markets in the Middle East, Africa, South America, etc
  • Has a long service life and low maintenance cost
    • High-quality LED + LiFePO4 battery + aluminum alloy structure
    • The entire lamp has a long lifespan and requires low maintenance in the later stage
    • It offers a 3-year warranty and is suitable for engineering and long-term projects

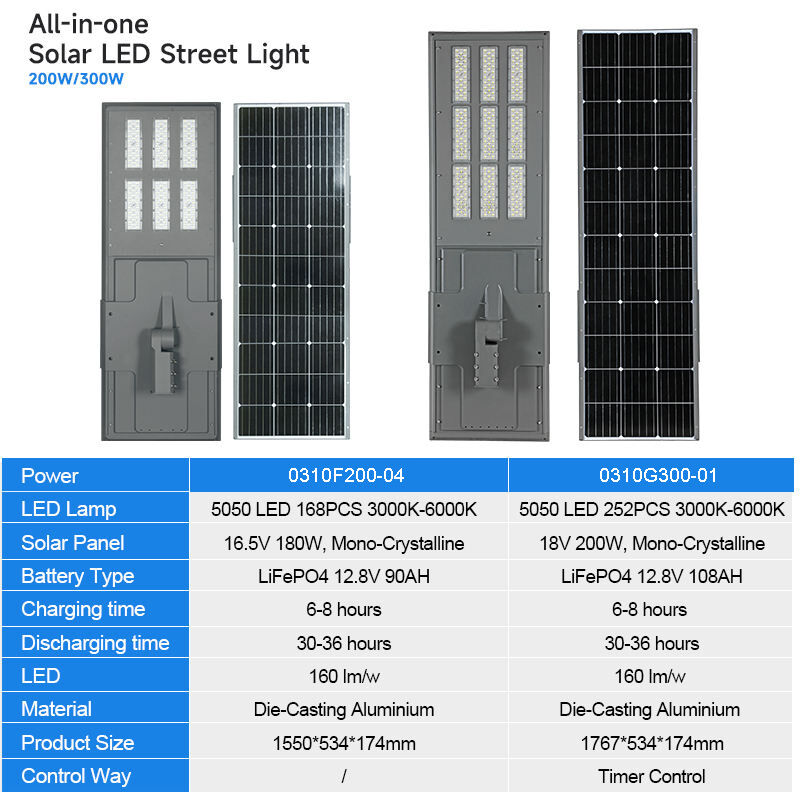

Specification

Item No. 0310F200-04 03106300-01
LED Lamp 5050 LED 168PCS 6000K 5050 LED 252PCS 6000K
Solar Panel 16. 5v 180w, Mono-Crystalline 18v 200W, Mono-Crystalline
Battery Type LiFePO412.8V 90AH LiFeP0412.8V 108AH
Charging Time 6-8 hours 6-8 hours
Discharging Time 30-36 hours 30-36 hours
LED 200 Im/w 200 Im/w
Material Die-Casting Aluminium Die-Casting Aluminium
Install Height 8-10m 10-12m
Dimensions 1550*534*174mm 1767*534*174mm
Warranty 3 years 3 years

Product description

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation 0

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation 1

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation 2

All in One Solar Street Light with LiFePO4 Battery for 8–12m Pole Installation 3
